100-1000L
STABAKE
Product Description
Introduction:

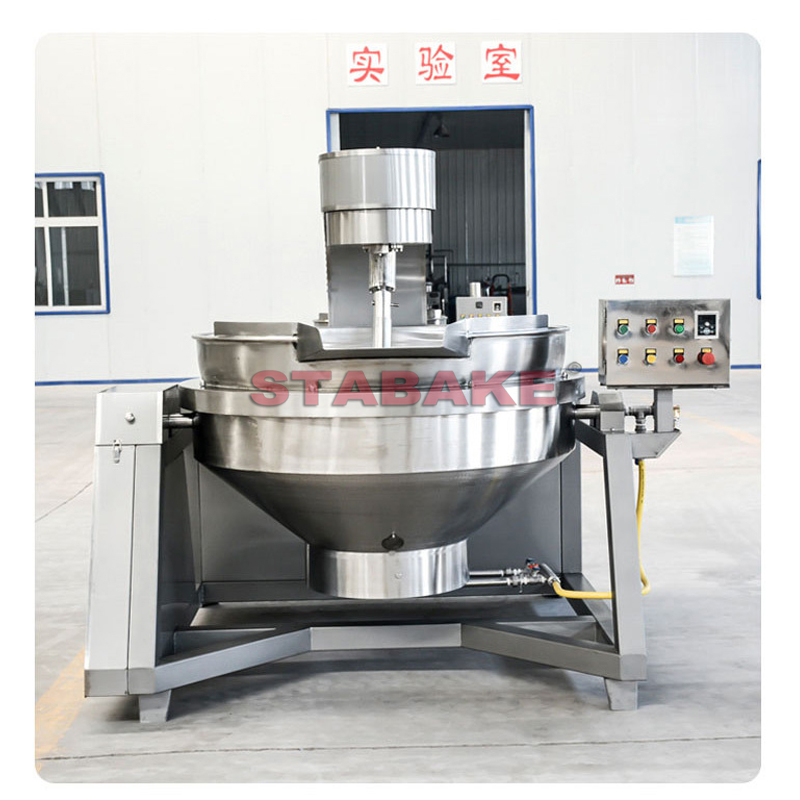

Sauce Jam Cooking Mixer mainly adopt electromagnetic as the heating source. It uses an electric current to pass through a coil to generate a magnetic field. When the magnetic force in the magnetic field passes through the bottom of the pot, countless small eddy currents will be generated, which will make the pot heat up quickly, and then heat the raw materials in the pot. The pot body of the electromagnetic cooker is a composite pot body. The part in contact with food is made of 304 stainless steel, and the other parts are 201. The advantage of this pot body is compatible with each other and heat up evenly. It avoide using the full 304 pot body to generate the phenemenon of coil and control system aging.
Advantages:
Compared with traditional cooking machine, industrial fully automatic planetary stirrer cooking kettle have the following obvious advantages:
1. High production efficiency: Automatic cooking reduces the time and save labor costs of manual stir-cooking and greatly improves production efficiency.
2. Stable quality: Through a precise control system, the quality of the products cooked/fried can be guaranteed to be stable per batch.
3. Safe and reliable: The equipment design takes into account safety factors, such as overheating protection, automatic cutting gas supply etc to ensure production safety.
4. Energy saving and environmental protection: The optimized heating system and energy-saving design reduce energy consumption and exhaust emissions.
Parameters:
| Model | Pot diameter | Pot thickness | Mixing power | Natural gas | LPG | Electric heating power | Dimensions |
| 100L | 800mm | 4mm | 1.5KW | 3m³/h | 2kg/h | 20KW | 1700*1350*1550mm |
| 200L | 900mm | 4mm | 1.5KW | 4.5m³/h | 3kg/h | 25KW | 1800*1450*1600mm |
| 300L | 1000mm | 4mm | 1.5KW | 6m³/h | 4kg/h | 30KW | 1900*1550*1650mm |
| 400L | 1100mm | 5mm | 2.2KW | 7.5m³/h | 5kg/h | 40KW | 2000*1650*1700mm |
| 500L | 1200mm | 5mm | 4KW | 9m³/h | 6kg/h | 50KW | 2100*1750*1750mm |
| 600L | 1400mm | 5mm | 4KW | 10.5m³/h | 7kg/h | 50KW | 2500*2100*1900mm |
| 800L | 1400mm | 8mm | 4KW | 10-15m³/h | 5-10kg/h | 60KW | 2500*2100*1950mm |
| 1000L | 1600mm | 8mm | 4KW | 15-20m³/h | 10-15kg/h | 60KW | 2500*2100*2000mm |
Feature:
All metal parts in contact with food are made of SS304, durable and easy to maintenance.
Planetary mixing methods can make the agitators scraped the pot thoroughly and mixed materials evenly.
The bottom and side scrapers closely contact with pot body, prevent the materilals from pasting to the pot body.
Heating temperature and stirring speed can be adjustable on control panel.
Different heating methods are avaiable.
Applications:
This automatic cook mixer is an essential tool in the food industry due to its ability to stir-fry various ingredients, including sauce, paste, jams, vegetables, nuts, etc. With its exceptional quality and functionality, it has become a popular tool in the catering industry and is highly valued by chefs and cooks alike. Whether you're quickly stir-frying or preparing a complex sauce, this planetary stir-fry saucepan is the perfect tool to add to your kitchen arsenal.
FAQ
What is the capacity of this Sauce Jam Cooking Mixer?
The machine full volume ranges from 100 liters to 1000 liters which can process about 50~700 kg of materials.
Can this machine use gas heating only?
No, you can also choose electric induction heaing and electric thermal oil heating.
Is this machine fully made of stainless steel?
Yes, all metal parts in contact with food are made of SUS304 and other parts are made of SUS201. It can be upgraded to be fully SUS304.
What is the lead time and the payment terms?
The lead time is 15-30 days according to the production arrangements.
The payment term is 100% TT in advance (30% TT as down payment and 70% TT paid before shipment). LC at sight is also acceptable.
