100-1000L
STABAKE

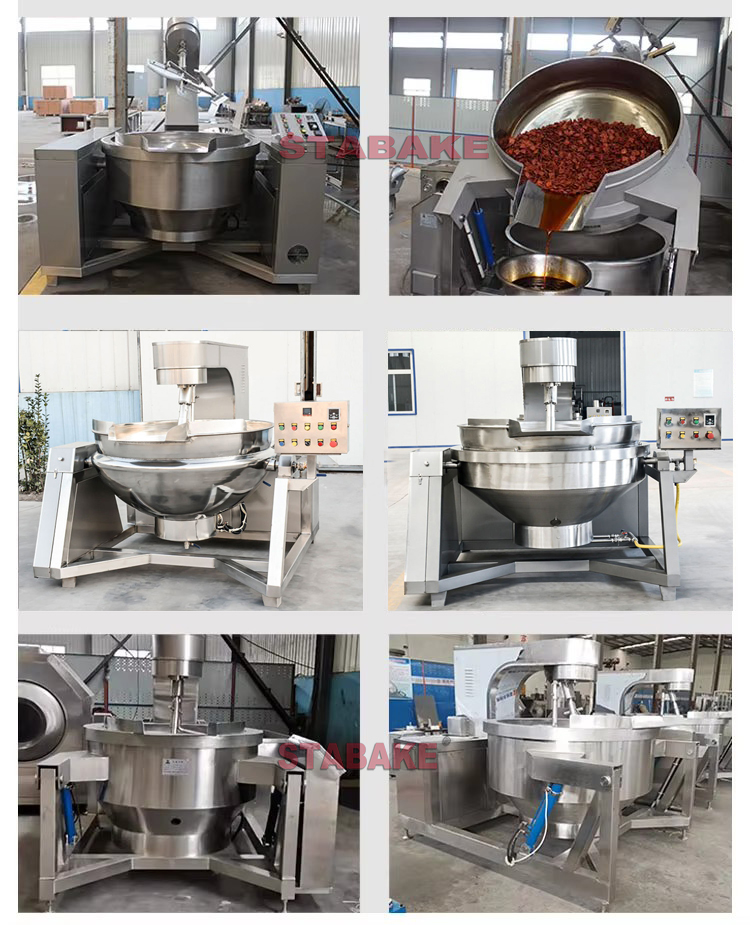

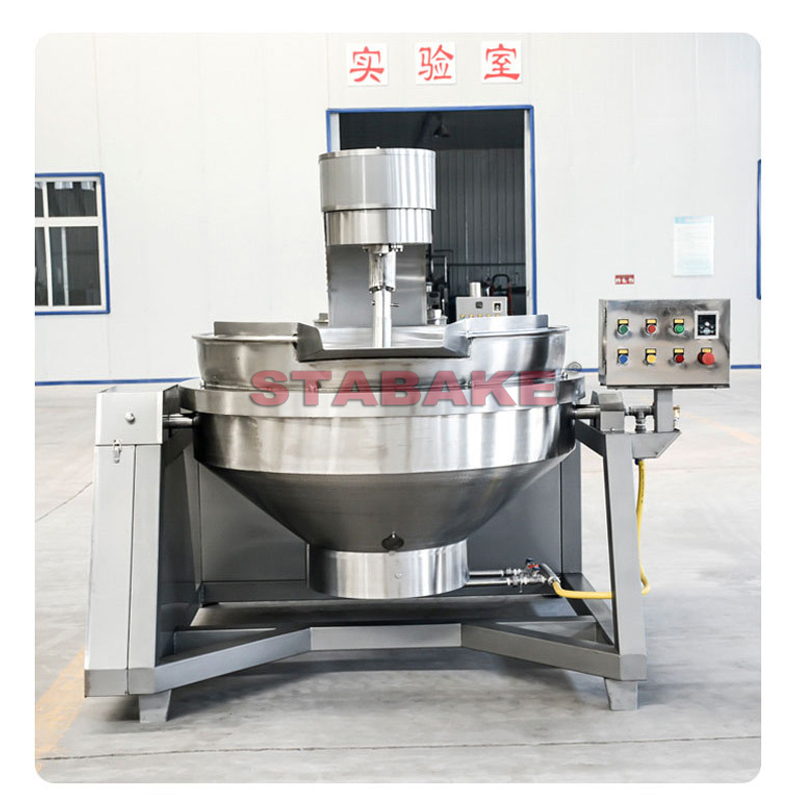

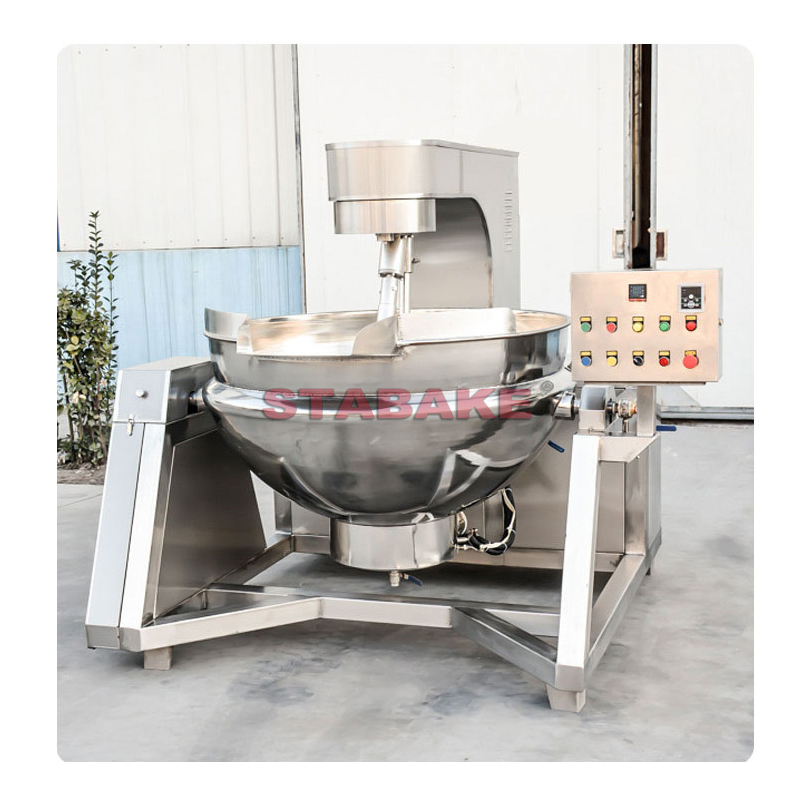

Product Description

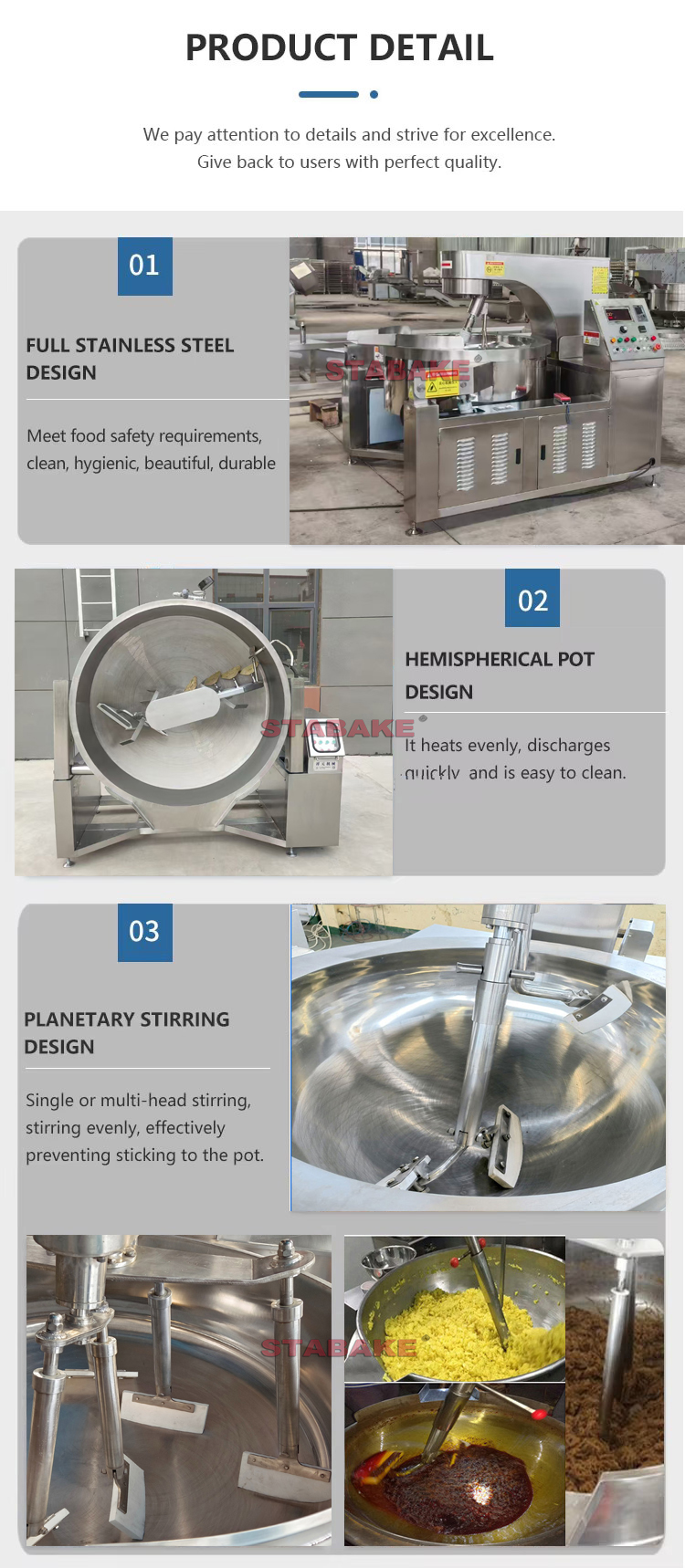

1. Pot Body:
It is made of hemispherical stainless steel that is formed by one-time stamping, with high roundness and close fit with the agitator to avoid sticking. The common specifications of the inner pot diameter are 800-1200mm, and the capacity covers 100L to 600L.

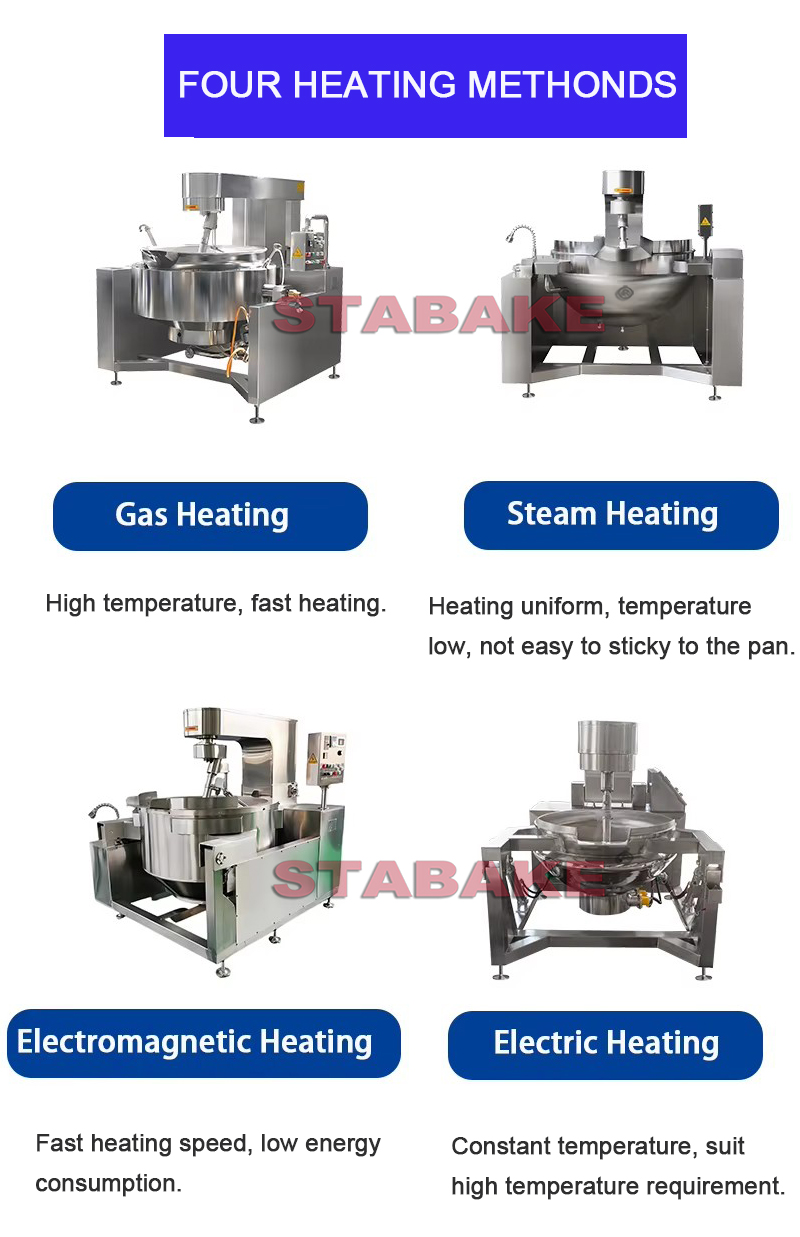

2. Heating System:
Supports multiple heating methods: gas (natural gas, liquefied gas), electric heating heat transfer oil, electromagnetic, steam, etc., to meet the needs of different materials. For example, electromagnetic heating is energy-saving and efficient, and steam heating is gentle and suitable for sensitive materials (such as Chinese medicine, jam).
Some models adopt a sandwich design (such as a heat transfer oil sandwich pot) to improve heating uniformity.
3. Mixing System:

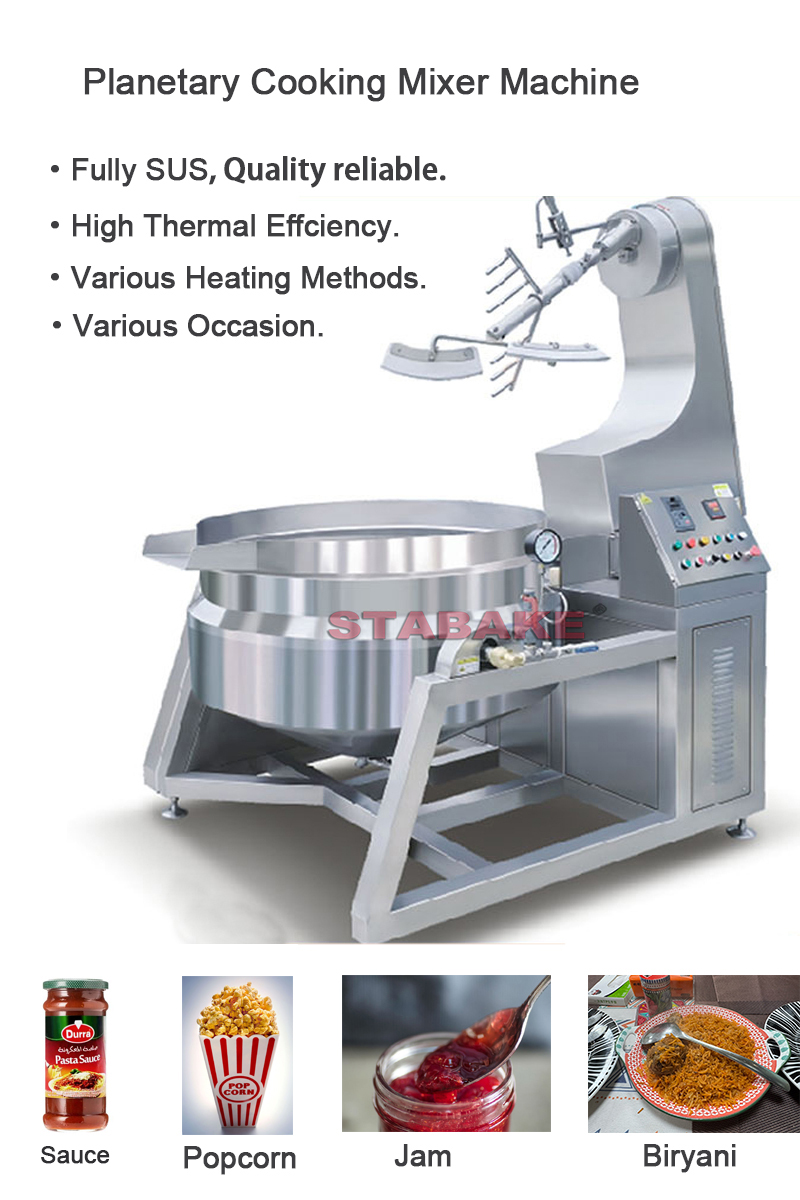

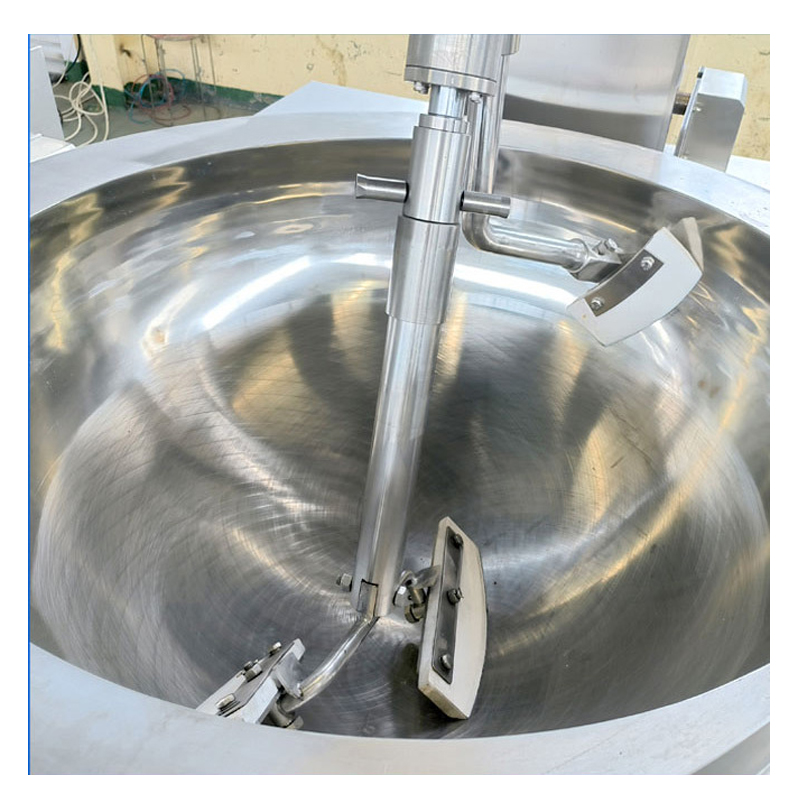

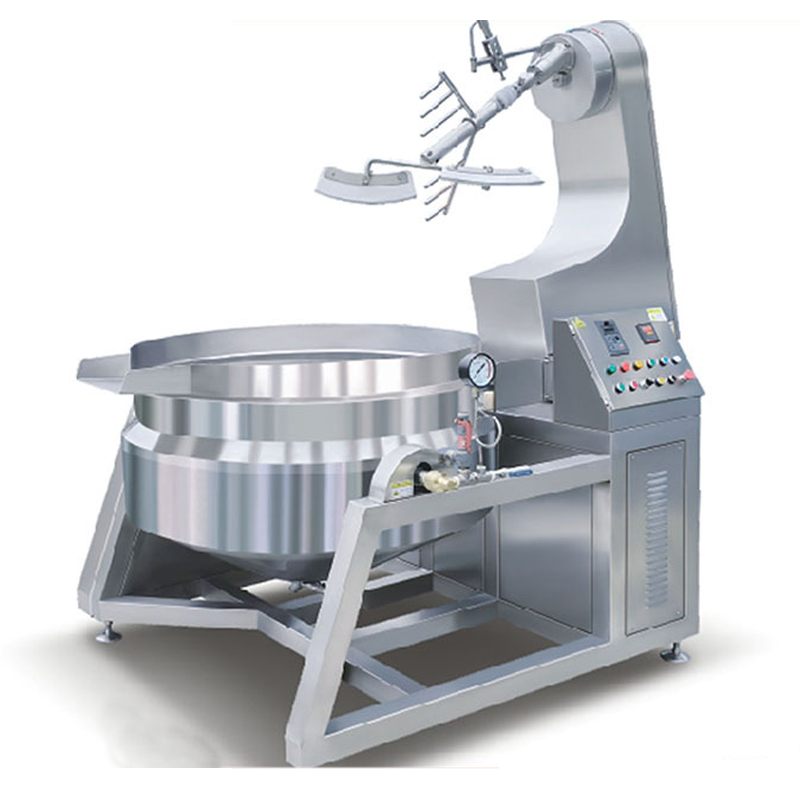

Planetary agitator: Through the non-integer transmission ratio of the combination of rotation and revolution, it can achieve stirring without dead angles in the pot, especially suitable for high-viscosity materials (such as hot pot bases, sauces).
Frequency conversion speed control mixing speed, stable operation.
4. Automation Function:

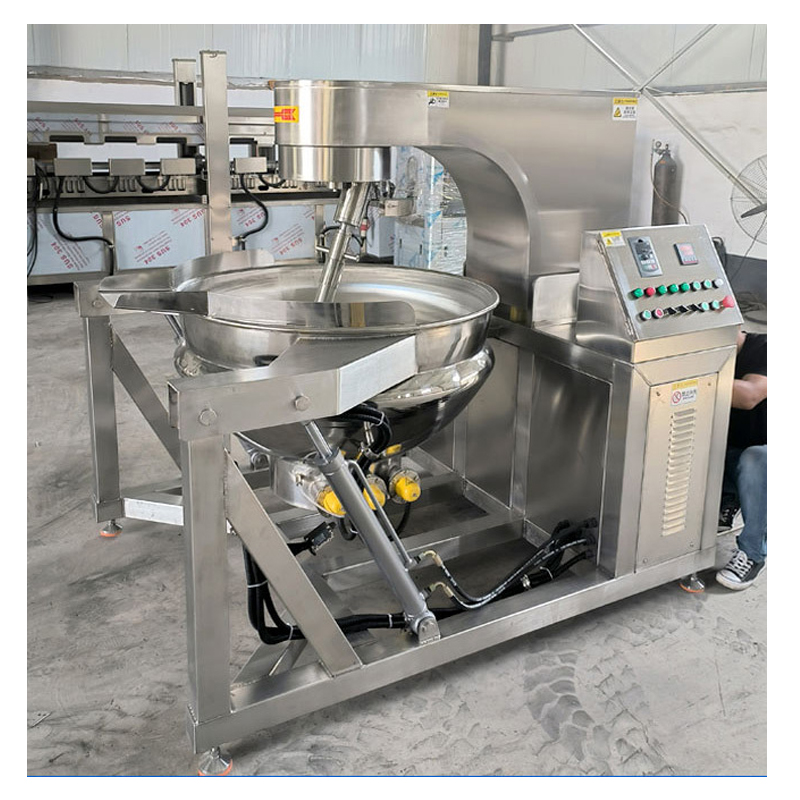

Hydraulic discharging system reduces manpower operation and improves efficiency.
| Model | Pot diameter | Mixing power | Hydraulic power | Dimensions | Heating Source |
| 100L | 800mm | 1.5KW | 1.5KW | 1700*1350*1550mm | Steam, gas, or electricity |
| 200L | 900mm | 1.5KW | 1.5KW | 1800*1450*1600mm | Steam, gas, or electricity |
| 300L | 1000mm | 1.5KW | 1.5KW | 1900*1550*1650mm | Steam, gas, or electricity |
| 400L | 1100mm | 2.2KW | 1.5KW | 2000*1650*1700mm | Steam, gas, or electricity |
| 500L | 1200mm | 4KW | 1.5KW | 2100*1750*1750mm | Steam, gas, or electricity |
| 600L | 1400mm | 4KW | 1.5KW | 2500*2100*1900mm | Gas, or electricity |
| 800L | 1400mm | 4KW | 1.5KW | 2500*2100*1950mm | gas, or electricity |
| 1000L | 1400mm | 4KW | 1.5KW | 2500*2100*2000mm | gas, or electricity |
Feature:
1. Efficient And Uniform Heating:
The bottom of the pot adopts a multi-layer insulation structure, which heats up quickly and saves energy.
The temperature control system can accurately adjust the material temperature or heating temperature to avoid overheating or sticking.
2. Multi-Functional Adaptation:
This Sauce Industrial Cooker With Mixer is suitable for a variety of processes such as stir-frying, soup, frying, and sauce making, covering food processing (such as mooncake fillings, chili sauce, hot pot base), pharmaceuticals, daily chemicals, and other industries.
3. Health And Safety:
The sealed transmission structure prevents pollution and meets food-grade hygiene standards.
Some models are equipped with a safety alarm system (such as a wind alarm for gas heating).
4. Easy To Operate:

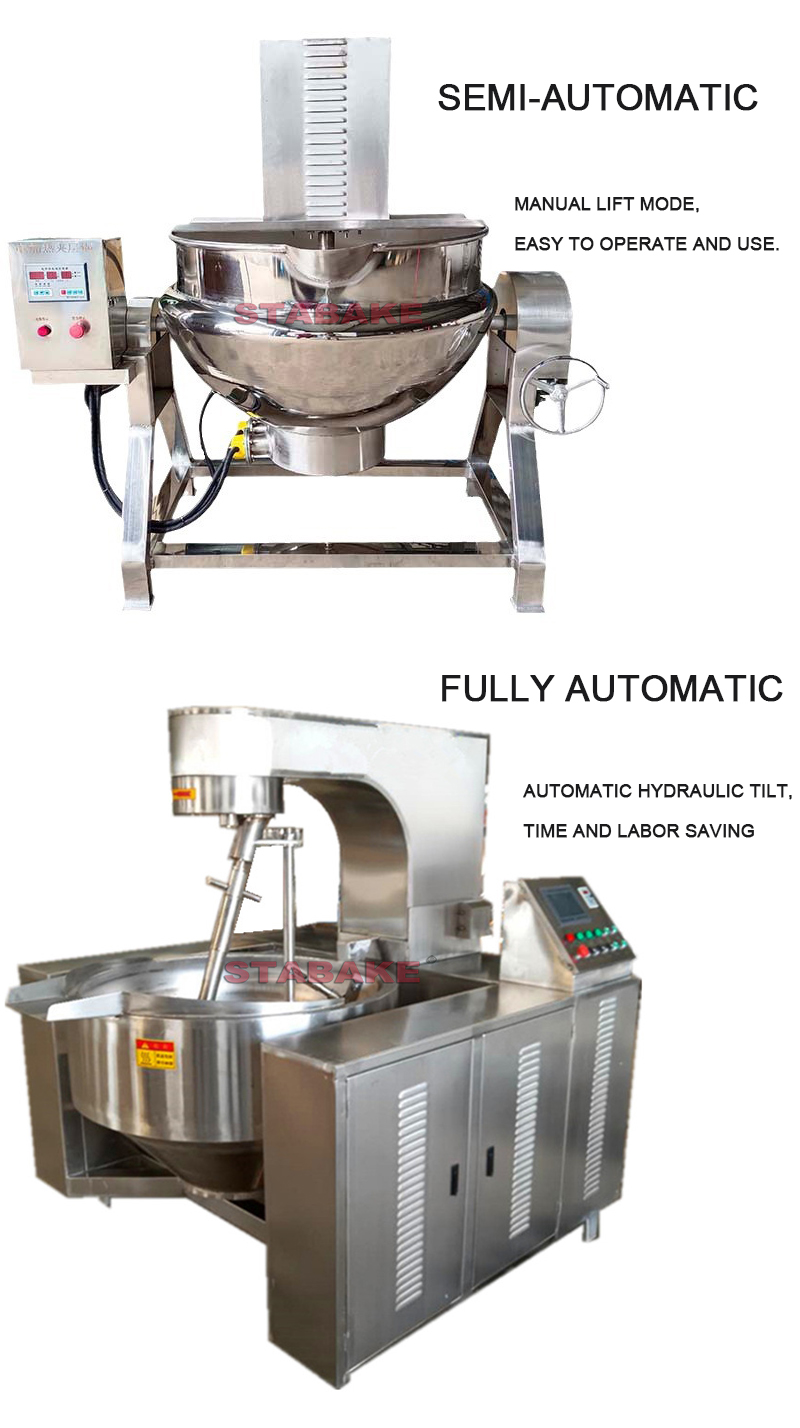

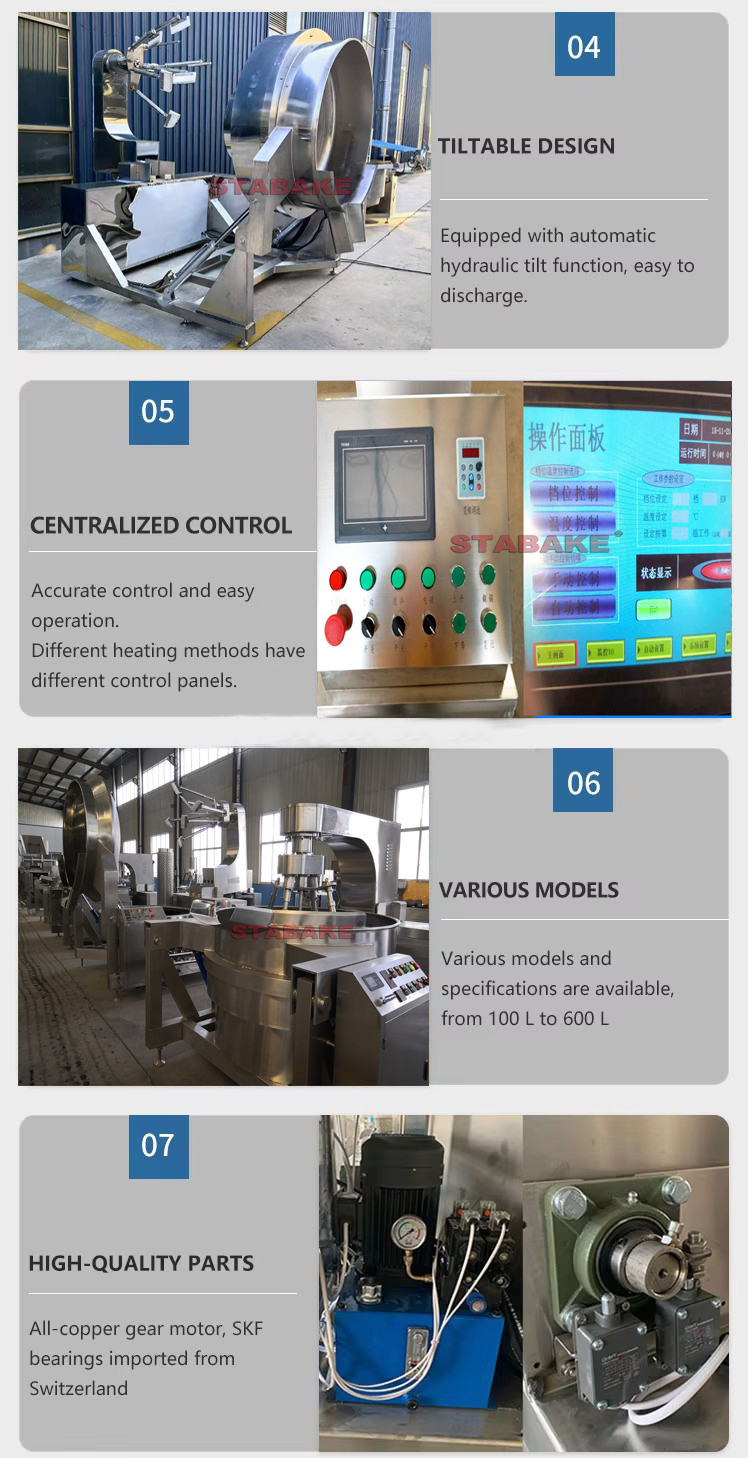

The tilting design is easy to clean and discharge. The fully automatic model achieves one-button operation through a hydraulic system.

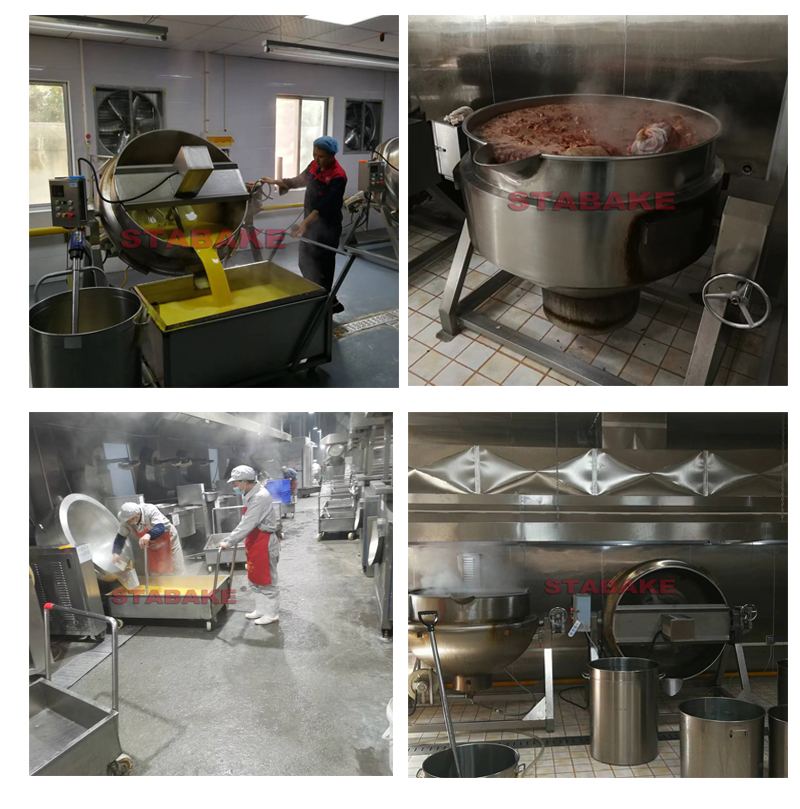

Applications:
1. Food Processing Industry:
Sauces and fillings: hot pot base, bean paste, lotus paste, bean paste, etc.
Meat products: stir-frying of stewed food, meat sauce, and seafood sauce.
Baking and candy: boiling jam, sugar, and mooncake fillings.
Catering and canteens: large-scale cooking, stewing meat, and cooking porridge.
2. Pharmaceuticals And Chemicals: processes such as concentration of medicinal materials, gelatinization, and sugarization.
3. Other Fields: mixing and heating of daily chemical raw materials.
FAQ
What is the capacity of this Sauce Industrial Cooker With Mixer?
The machine full volume ranges from 100 liters to 1000 liters which can process about 50~700 kg of materials.
Can this machine use gas heating only?
No, you can also choose electric induction heaing and electric thermal oil heating.
Is this machine fully made of stainless steel?
Yes, all metal parts in contact with food are made of SUS304 and other parts are made of SUS201. It can be upgraded to be fully SUS304.
What is the lead time and the payment terms?
The lead time is 15-30 days according to the production arrangements.
The payment term is 100% TT in advance (30% TT as down payment and 70% TT paid before shipment). LC at sight is also acceptable.
